- Size: 30
- Place of Origin: jinan
- Brand Name: beer brewing equipment
- Model Number: 500L
- Weight: 3000.000 kg
1. Introduction

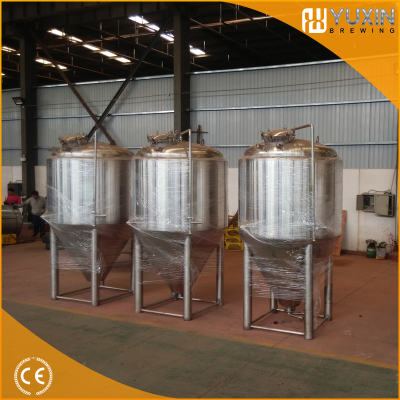

♦ All parts of Shendong beer fermentation tanks are made in top-grade certified stainless steel materials (2B or precise polish for available surface).
♦ Beer brewery equipment adopt the PLC control system, it is equipped with against dry heating protection system, also with the Fault search system.
♦ We also can custom fabricate any tank to meet your brewery’s space and height restrictions.
Inner surface | SUS.304,WELL POLISHED,polishing precision≤0.4µm,THK:3-4mm |
Outside surface | SUS.304,frosted or mirror,THK: 2mm |
Top shape | Dished head or conical head |
Conical degree | 60-75°c |
Manhole location | Side upward/side/flanged |
Insulation | 80-100mm polyurethane or rockwool |
Cooling jackets | Glycol cooling jackets/dimple jacket at bottom and side wall. |
Spray ball | Located in the center of inside of the tank |
Pressure | Working pressure: 0.15MPa; Design pressure: 0.3MPa |
Thermometer | Bi-metal thermometer |
Legs | 3/4 round adjustable legs |
The ratio of working volume to gross volume | 4/5 |
Operational method | Semi-Automatic or PLC |
Technology processing | Argon-arc welding |
2. Features
1. 100% Stainless Steel SUS304 Construction;
2. Dish top cover & Cylinder Body & 60-75°Conical Bottom;
3. Glycol cooling jacket( cover body & bottom);
4. 80-100mm PU foam Insulation;
5. Tanks designed for up to 15 PSI and tested at 30 PSI ;
6. Inside of the tanks are polished to Ra<0.4um
7. Side way manhole or up way manhole;
8. CIP with Spray Ball;
9. Thermometer (PT-100) in thermowell at side;
10. Sanitary Sample valve ;
11. Pressure Relief valve
12. Rotating Racking Arm with TC Butterfly Valve;
13. Bottom outlet with TC Butterfly valve;
14. Adjustable legs with pads.
5. Packing and Shipping
We consider all different potential situation in the delivery, so we use every prevention measures to avoid any potential inconvenience or trouble.
Bulk cargo: Standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the surface of our High-quality 10BBL brewing system mash tank brewhouse, mash tank brewhouse beer used.
Container cargo: All the equipments will be bounded firmly and won’t easily swing to the side, or up, or down.
. After-sale services
We have a high efficiency after-sales service team. As a professional beer equipment supplier, we regard after-sale service as important as equipment quality, especially for international customers.
1. We dispatch our engineer to help you install the equipments and teach you how to operation at your local site.
2. Customer can ask for engineer dispatching service not only at intalling, trainning and debuging, also at the whole working life of the machine we delivery.
3. The engineer will come to the agreed place at the confirmation of After-sale Department, and no longer than 10days after all the documents include Visa and airticket finished.
4. All the main equipments are of 3 years' warranty and all life services.
Why choose us
Perfect Brewery Equipment, for Beer with Character
-With the best cost performance
We are not the biggest enterprise, but we supply the good equipment with competitive price. We are doing our best to help customers realize their brewery dream within their budget.
-Rising quality
Everything we do, we do with a meticulous eye for the maximum level of Quality, Consistency and Durability. We are certificated by CE and ISO9001.
-Wholeheartedly service
We are your partner throughout the entire brewery development process. We will be as involved as you are comfortable with; it's an honor to be a part of your team. Always at your fingertips - you can count on us for solutions, not just some tanks and pipes.
-With Trade Assurance Granted by Alibaba.com
We have Trade Assurance granted by Alibaba.com, it's seen as Buyer Protection. Order quality protected, payment safety, timely shipment; 100% of assurance amount refundable.
