- Size: 50
- Place of Origin: jinan
- Brand Name: beer brewing equipment
- Model Number: 1000L
- Weight: 4000.000 kg

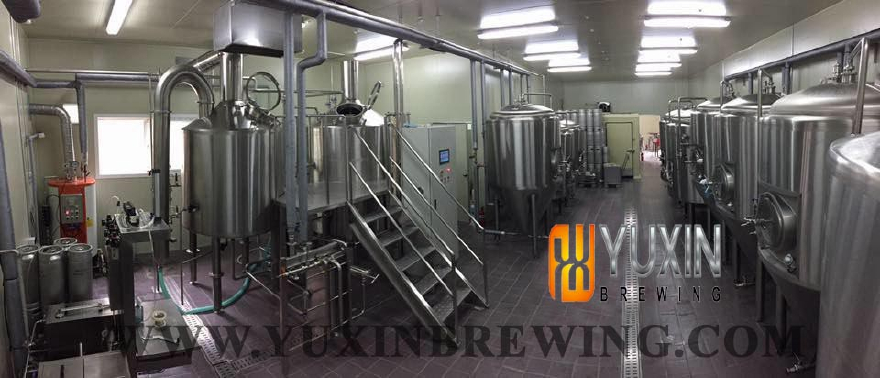

Introduction of the microbrewery fermenter/unitanks/bright beer tank:
Effective volumn: 50L~5000L, 1bbl~30bbl and even larger
Material: All adopt the SUS304/316 optional, food and sanitary grade material, with polyurethane inslutaion, thickness 50~100mm rely on the capacity of the fermentor.
Appearance design:Conical type, total capacity at least 20%~25% up the useful capacity, fermenter bottom cone 60~75 degree, bright beer tank 150 degree, compression resistance
Manhole: Chunk/Flange/side or upward manhole type, various from capacity
Cleaning: with 360 degree spray cleaning ball, thorough cleaning and disinfection
Cooling: stainless steel glycol/ice water cooling jacket
Pressure: pressure hold, desigen pressure 0.3Mpa, with 48housr pressure test before delivery
Acessories: Pressure gauge, temperature proble, relife valve, ice water solenoid valve, sampling valve assorted,easy operation and assemble
Control: Temperatuer, pressure single tank, single control
Process: pure argon gas welding, double face forming, mirror polishing with precision up to Ra0.4.
- Size: 50
- Place of Origin: jinan
- Brand Name: beer brewing equipment
- Model Number: 1000L
- Weight: 4000.000 kg
Introduction of the microbrewery fermenter/unitanks/bright beer tank:
Effective volumn: 50L~5000L, 1bbl~30bbl and even larger
Material: All adopt the SUS304/316 optional, food and sanitary grade
material, with polyurethane inslutaion, thickness 50~100mm rely on
the capacity of the fermentor.
Appearance design:Conical
type, total capacity at least 20%~25% up the useful capacity,
fermenter bottom cone 60~75 degree, bright beer tank 150 degree,
compression resistance
Manhole: Chunk/Flange/side or upward manhole type, various from capacity
Cleaning: with 360 degree spray cleaning ball, thorough cleaning and disinfection
Cooling: stainless steel glycol/ice water cooling jacket
Pressure: pressure hold, desigen pressure 0.3Mpa, with 48housr pressure test before delivery
Acessories: Pressure gauge, temperature proble, relife valve, ice
water solenoid valve, sampling valve assorted,easy operation and
assemble
Control: Temperatuer, pressure single tank, single control
Process: pure argon gas welding, double face forming, mirror polishing with precision up to Ra0.4.
