- Size: 20
- Place of Origin: jinan
- Brand Name: beer brewing equipment
- Model Number: 500L
- Weight: 200.000 kg
brewing Equipment 1000l
Product description: Industry brewery 1)Raw Materials Pretreatment Department; 2)Mashing Treatment Department; 3)Fermentation Treatment Department;4)Cooling Treatment Department5)CIP Treatment Department6)Filtering Treatment Department 7)Beer filling system8)Beer distribution Department9)Electric controlling Department -PLC Business Partner Wanted: We are finding business partners all over the world to sell our brewery lines. If you are interested in this brewery industry scope of business in your local place, please contact us for any further information you may need. Configuration Sample List:

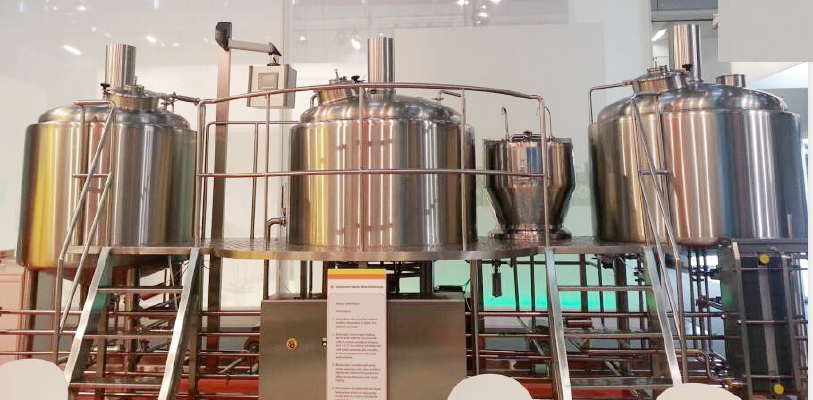

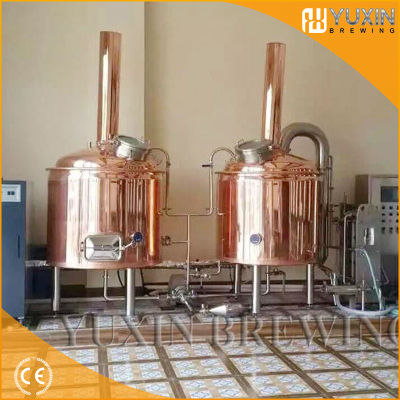

Compete Brewery Line Main configuration ListThe following configuration is a general components formation for one complete brewery line, the daily capacity including 1000L/day .1) Raw Materials Pretreatment Department1.Mixing wort in the mixer 2.Crushing wort by the grinder3.Wort powder go into mash tun through the conveyor 2) Mashing Treatment Department 1.Red copper beer dispenser, it's deticated in pub microbrewery and style can be design 2.Red copper handrail of platform 3.Red copper boiling kettle 4.Red copper lauter tun 5.Whirl pool Motor power: 1.5kW(adjustable) Inner-Jacketthickness: 3.0mm; External-Jacket thickness: 1.5mm; Cylinder (Oval, SUS304), thickness: 3.0mm. Insulation: Polyurethane-thickness: 80mm. Polishing precision up to: Ra0.4; Outsourcing surface: Weld polishing processing. Filtering method: Variable frequency pump suction filtration (pump speed adjustable); Filter board gap≤1.0mm. 3) Fermentation Treatment Department
Fermentation Treatment Department
Fermentation tank;Yeast adding tank;Oxygenate charging device;Pipelines & valves etc
1 CIP comprehensive cleaning ball 2 mechanical safety valve
3 physical pressure gauge 4 pressureproof manhole door
5 temperature probe pt-100 6 stainless valves Single tank single control, maitreya plate cooling jacket. Cooling method: Ethylene glycol or alcohol cooling. Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304) thickness: 1.5mm; Oval head cone bottom, thickness: 3.0mm. Insulation: Polyurethane-thickness 80 mm 4)Cooling Treatment Department Ice water tank; Alcohol water mixture tank ;Refrigerating unit; Circulating pump; Pipelines & valves ect Inner (SUS304)thickness: 3.0mm; External-Jacket(SUS304)thickness:1.5mmInsulation: Polyurethane thickness 80mm;Temperature way: temperature probe PT100,temperature control panel display. 05) CIP Treatment DepartmentCIP, include alkali tank, disinfection tank,CIP pump,pipeline and valves etc. Inner container thickness: 2mm; Heating power: 2kw. Material all adopt the international standard of 304 stainless steel, all welding are argon protection single-sided, double-sided forming, with heating function. 06)Filtering Treatment Department Kieselgur filter and BBT
07)Beer filling system 1.Automatic barrel filler
2.Automatic barrel washer
3.Stainless steel beer keg 08)Beer distribution Department 1.Red copper beer tower can be custom design,microbrewery special
2.6-heads ceramic beer tower09)Electric controlling Department -PLC
International standard GGD cabinet, stable performance, easy and simple to handle. Not only guarantee the quality of beer and pure taste, more save unnecessary management cost for you. 10) A set of equipment equipped with a complete set ofaccessories
If you have any questions, feel free to contact us Welcome to Jinan Shendong, your specialist for brewing equipment. Whether you're going to plan you own home brew or are planning a complete brewery system (and everything in between!), We can help you with our top quality brewer equipment.
